Honeyword Guessing with PassFlow

Repurposing a Generative AI model to distinguish human vs computer-generated passwords (Computer Science thesis).

Context

Computer Science Bachelor Thesis

Duration

Three months

My Role

Coding & Research

Team

Me &
Prof. Emiliano Casalicchio

Abstract

On this page I'll give a quick overview of my Computer Science thesis.

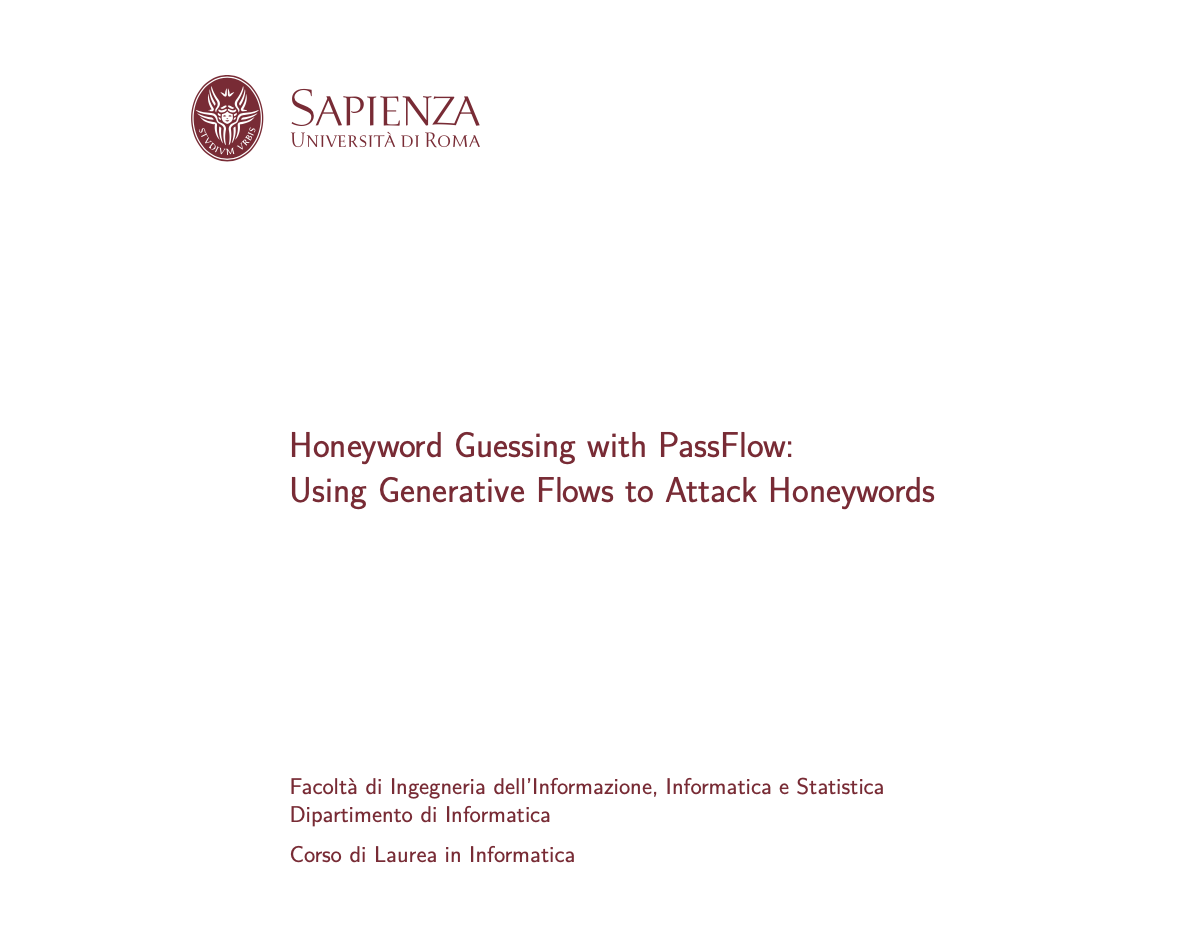

The full thesis is available here.

For this project I repurposed a generative AI model called PassFlow, used to generate passwords that appear to be made by humans, and turned it into a "guesser model", i.e. a model that tries to discern real, human-generated passwords, from fake ones, created with other password generation techniques.
This is called honeyword guessing, and these "fake" passwords are called honeywords.

I empirically tested this repurposed model against other models previously used in the literature to compare their performance and found that, under certain conditions, PassFlow outperforms them.

Sweetwords & Honeywords

Honeywords are fake passwords that are stored in the database alongside the user's real password.

The point is to confuse potential attackers, as even if they manage to gain access to the database, they won't be able to distinguish the real password from the honeywords.
Then, if an attacker attempts to access an account using a honeyword, the system can detect the intrusion and initiate appropriate security measures.

A sweetword is a string whose identity we don't know - it could be either a real password or a honeyword.
Each user in the database will have a set of $k$ sweetwords, which includes $k - 1$ honeywords and the user's real password.

There are various methods to automatically generate Honeywords. These methods are called Honeyword Generation Techniques.

Schematic of an example Honeyword Generation Technique "Modeling Syntax"

Honeyword Guessing means trying to guess, given a set of sweetwords, which of them is the real password and which are instead honeywords.
To do this, a model assigns a probability to each of the sweetwords, and the sweetword that is assigned the highest probability of being a real password is selected for an access attempt, a "guess".
This guess is sent to the honeychecker, the part of the system that will check if the guess is correct.

Schematic of the honeyword guessing process: assign probabilities, select guess and check.

PassFlow

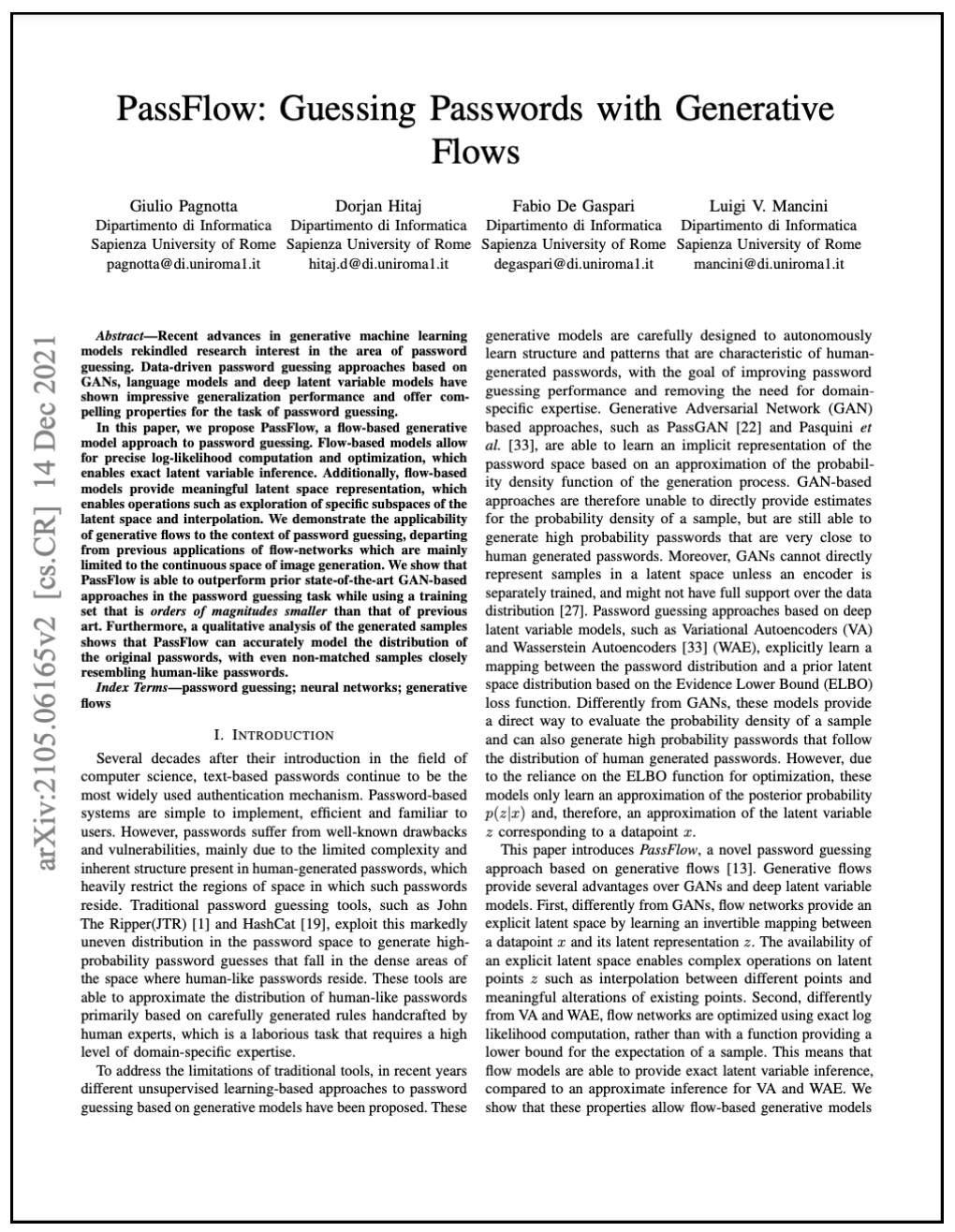

PassFlow, a model devised by Pagnotta et al. [1], is a type of generative machine learning model. Specifically, it is categorized as a Generative Flow.
It was originally designed to compete with models like PassGan [2] in traditional Password Guessing.

PassFlow

Pagnotta et. al.

Generative Flow models like PassFlow attempt to model the distribution they observe in a training set, in order to generate completely new samples.
To do this, the model learns an invertible function $f$ , created as the composition of a series of invertible functions (transformations). The function $f$ serves to transform a simple probability distribution (for example, a Gaussian) into a distribution that approximates that of the training set.
In the case of PassFlow, the training set is a list of real passwords, and once trained, PassFlow can generate new passwords similar to those created by real users.

The $f$ function of generative flows is a transformation created by composing a series of invertible transformations $f_{i}$

Lilian Weng

To generate a password using PassFlow we generate a value from the starting distribution (Gaussian) and give it to function $f$ , which will transform it into a sample from the final distribution (in this case, a password).
The property of generative flows that allows us to use them for honeyword guessing is their invertibility. In fact, by taking care to re-normalize the distribution at each step, we can invert $f$ and use it as $f^{- 1}$ . The function $f^{- 1}$ allows us to input a sample from the learned distribution (a password) and obtain the probability that the model assigns to that password.

Reversing the flow to obtain the probability of a sample

Experiments

To test PassFlow's performance, we compared it with another simpler model that has already been used with success in the existing literature. The model we selected is a Markov Model, chosen because in Wang et al.'s [3] paper on the Security of the Honeywords System, it proved to be a top performer at honeyword guessing according to several metrics.

Experiment workflow

Results

We tested four HGTs using two evaluation metrics: flatness and success. These are better explained in My Thesis.

Results of the experiments

These experimental results show that PassFlow can be effectively used as a model for honeyword guessing, and that under certain conditions, its performance surpasses that of other models previously used successfully in the literature.
